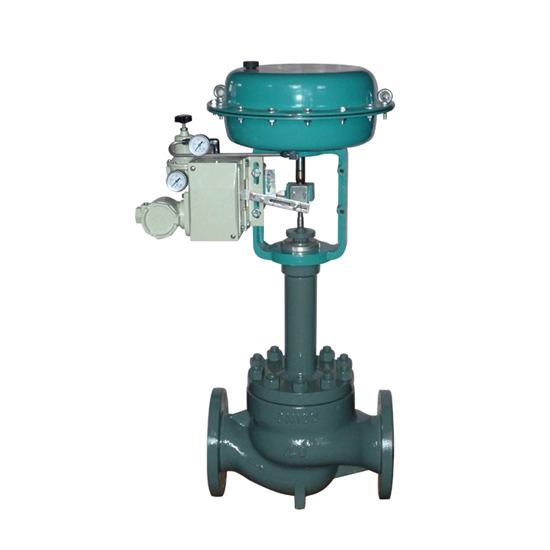

KPM- pneumatic high temperature control valve

關(guān)注次數(shù)：

所屬類(lèi)別：Quick high performance pneumatic control valve

Pneumatic high temperature control valve, a spring pneumatic diaphragm actuator (or piston pneumatic actuator) and low flow resistance regulating valve, multi spring actuator of low height, light weight, simple equipment. Pneumatic film high temperature regulating valve flow channel was streamlined S, has the advantages of compact structure, light weight, flexible action, small pressure drop loss, valve capacity, flow characteristics of precision, convenient maintenance, pneumatic high temperature control valve regulating mechanism adopts balanced valve plug valve structure, has good stability, not easy to vibration, low noise the temperature sensitivity, small. Pneumatic film high temperature control valve is especially suitable for leakage requirements is not high, high temperature.

1, the main performance index

Project			Not with a locator	With a locator
The basic error%			±5.0	±1.0
The return difference %			≤3.0	≤1.0
The dead zone%			≤3.0	≤0.4
Always point bias%	Open air	The starting point	±2.5	±1.0
	Open air	The starting point	±5.0	±1.0
	Air to close	The starting point	±5.0	±1.0
	Air to close	Finish	±2.5	±1.0
Rated stroke deviation%			≤2.5
Leakage L/h			0.01%×Rated capacity
Adjustable range R			30：1
